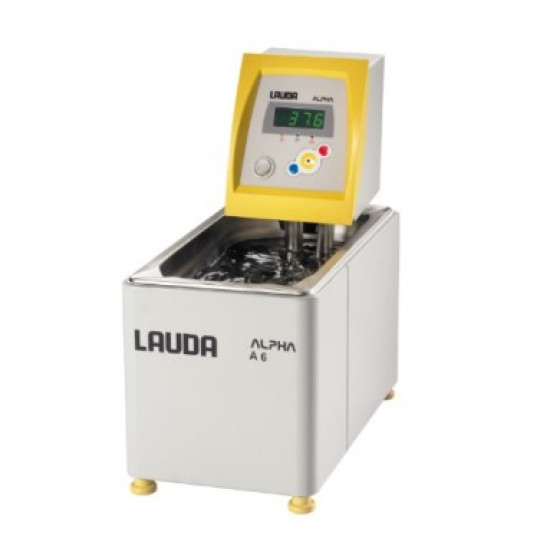

Lauda ALPHA Heating Thermostats A6

Lauda ALPHA Heating Thermostats A6
Lauda ALPHA Heating Thermostats A6

Heating thermostats from 25 to 100 °C for cost-effective temperature control thermostating in the lab

LAUDA Alpha is the most cost-effective choice when it comes to premium-quality LAUDA thermostats. These reliable and user-friendly thermostats, with features reduced to the essentials, can be operated with non-flammable liquids and are suitable for both internal and external temperature control tasks.

Important functions:

  • Deep-drawn stainless steel bath vessels
  • Integrated timer function allows automatic device shutdown
  • Low-level and overtemperature protection for operation with non-flammable liquids
Feet Four mounting feet
Height of top edge of bath without cover (mm) 212
Housing Powder-coated steel sheet
Ingress protection rating -> IP Code accor. To IEC 60529 IP30
Operating temperature range - 25 - 85 ° C
Power consumtion (kW) 1.5
Pump flow (L/min) 15
Pump pressure (bar) 0.2
Useable bath depth (mm) 130
Working temperature range 25 - 85 ° C
Bath Information
Bath Volume 2.5 - 5.5 L
Bath Depth 150 mm
Bath opening with head 145 x 161 mm (W x D)
Bath opening without head 145 x 295 mm (W x D)
Bath Vessel Deep-drawn inner tank in stainless steel 1.4301 conforming to SAE 30304 AISI 304
Warranty 12 months

Write a review

Note: HTML is not translated!
Bad Good
  • Status: Available
  • Reward Points: 216
  • Model: BD_LCBC0733
  • Weight: 6.20kg
  • Dimensions: 33.20cm x 18.10cm x 37.00cm
  • SKU: LCBC0733
